Sheet & Tube Metal Fiber Laser Cutting Machine
Technical Parameters
Capable of Cutting Both Sheet And Tubes
Integrated design, one machine integrates the cutting function of tubes and sheets, saving equipment procurement costs and equipment footprint, and making space layout more flexible.
High Dynamic Performance
The maximum linkage speed can reach 100m/min, with an acceleration of 1.5G, improving processing efficiency and significantly reducing processing time.

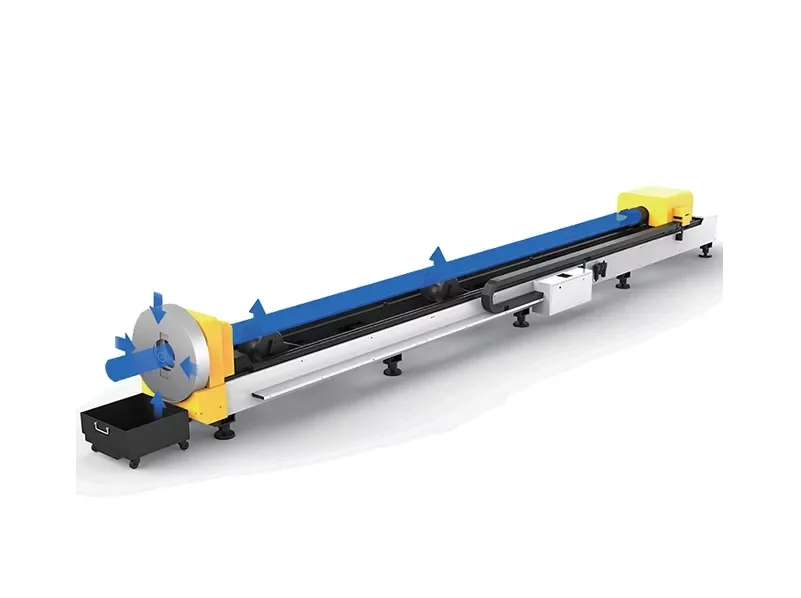

Fully Automatic Double Pneumatic Chuck
It can cut circular tubes with a diameter of 20-240mm, and it is also suitable for cutting square tubes, angle steels, and channel steels. The maximum weight of a single tube is 300kg, with a wide cutting range and strong cutting ability, easily meeting diverse processing needs.• Round tube cutting range：Φ20 - Φ240mm• Square tube cutting range：□20×20 - □240×240mm• Rectangular tube cutting range：20mm ≤ Side lengt h≤ 240mm• Angle steel cutting range：2#-18#(20×20mm-180×180mm)• Channel steel cutting range：5#-20#(50×37mm-200×75mm)
Dual Pneumatic Concave Wheel Support
Equipped with 2 pneumatic concave wheel support frames, it provides stable support during the tube cutting process, avoiding tube sagging or deformation and improving machining accuracy.

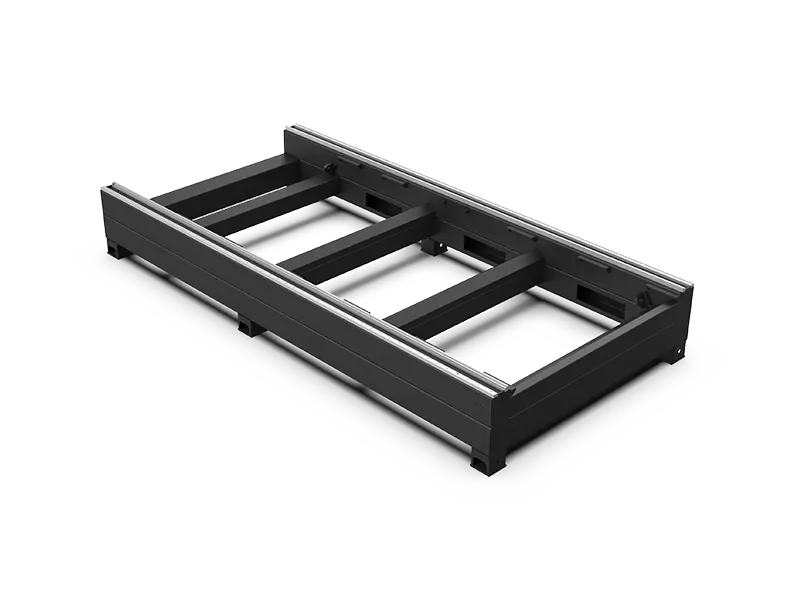

Upgraded Matrix Machine Bed with Rigidity
The machine bed is made of welded carbon steel, which undergoes high-temperature annealing and natural aging to eliminate welding stress, improve the strength and deformation resistance of the structure.

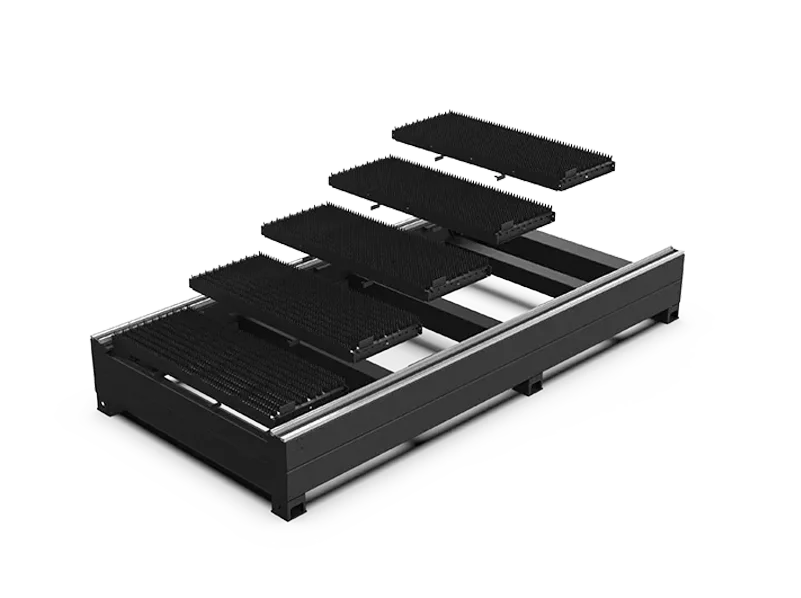

Modular Design of Workbench
The workbench adopts a modular design, which is flexible and convenient to replace; The staggered layout of the blade ensures even force distribution and prolongs the service life of the workbench.

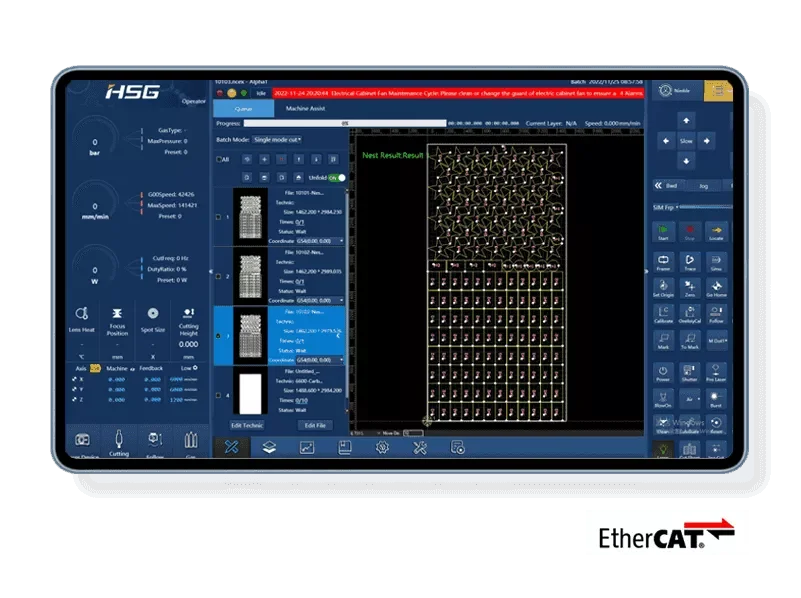

AlphaA Bus System
Integrating multiple powerful processing functions, coupled with a friendly human-computer interaction interface, to achieve convenient operation, greatly reducing the difficulty of operation, and helping you improve processing efficiency and enterprise benefits.
