TS2
High-performance Tube Fiber Laser Cutting Machine
Technical Parameters
Fast Cutting
The max linkage speed is 140m/min, the acceleration is 1.4G, and the chuck rotation speed is 140r/min. Dramatically shorten the delivery cycle with high-efficiency cutting.

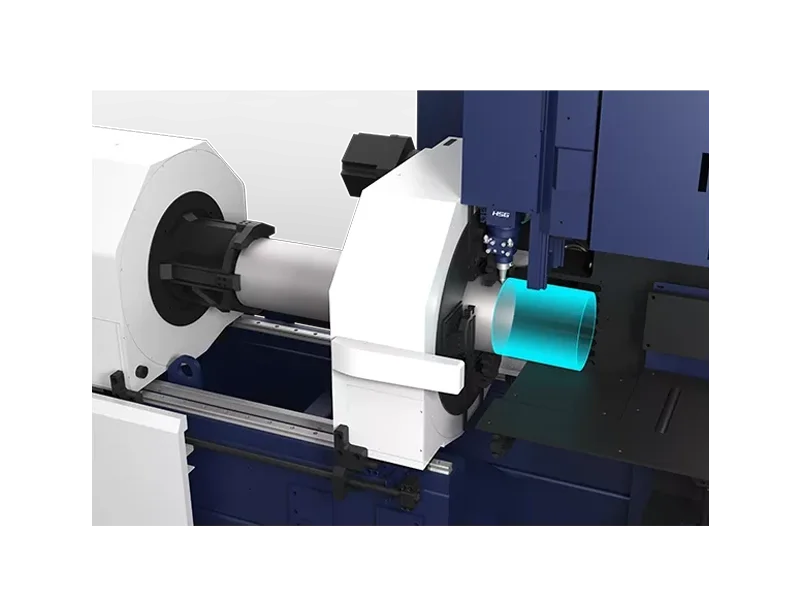

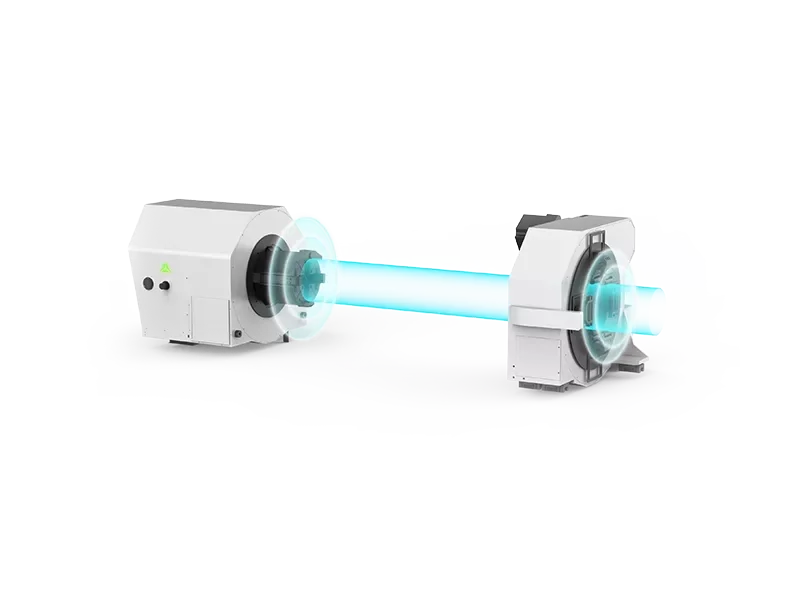

Dynamic Chuck
Two digital intelligent chuck as standard, automatically identify tube size and adjust air pressure and clamping force within 2 seconds.At the same time, the rear chuck is equipped with air and dust suction functions, making the workpiece tube cleaner and maintaining a clean processing environment.

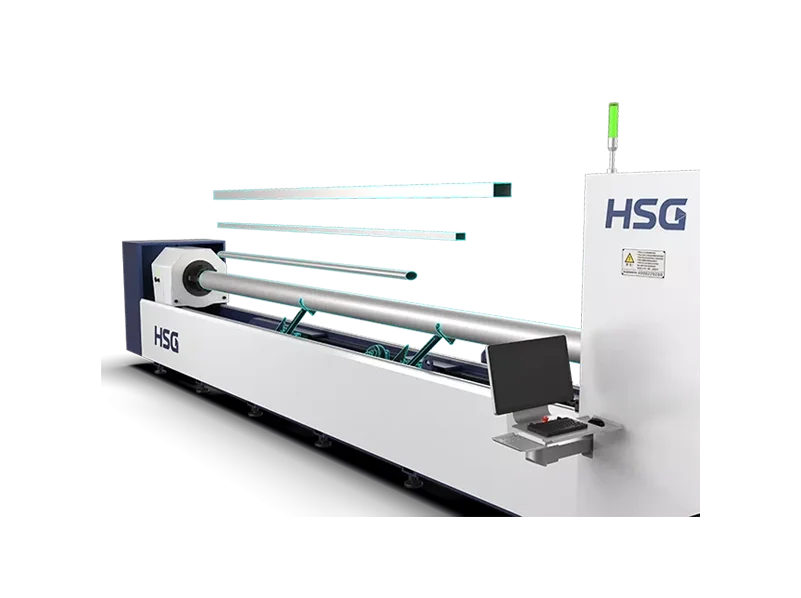

Capability of Multiple Tube Processing
Standard configuration includes two clamps for tubes and profiles, capable of processing tubes with a weight of ≤ 300kg and a diameter range of 12-273mm for round tubes. It also supports cutting profiles such as channel steel, angle steel, and I-beams.

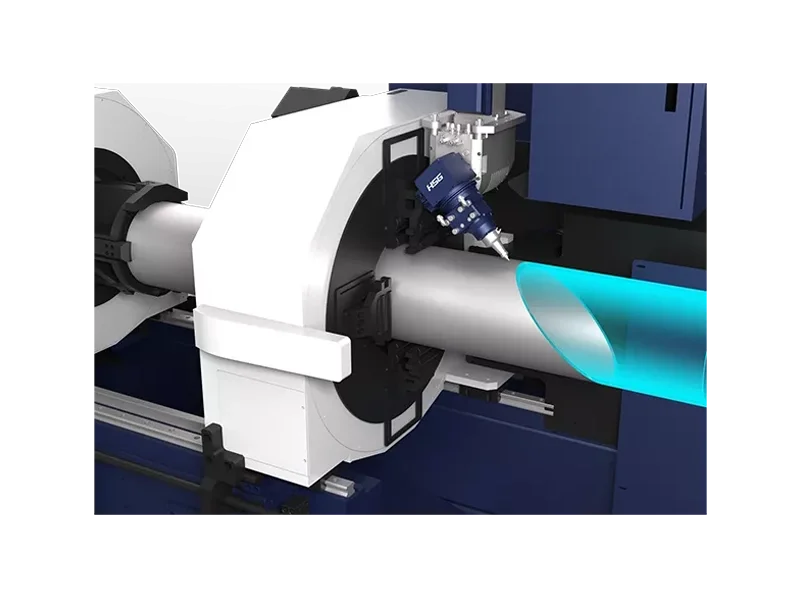

HSG 3D Cutting Technologies (Optional)
HSG-LA4 tube bevel cutting head can be optionally selected to be your secret weapon for complex tube cutting.

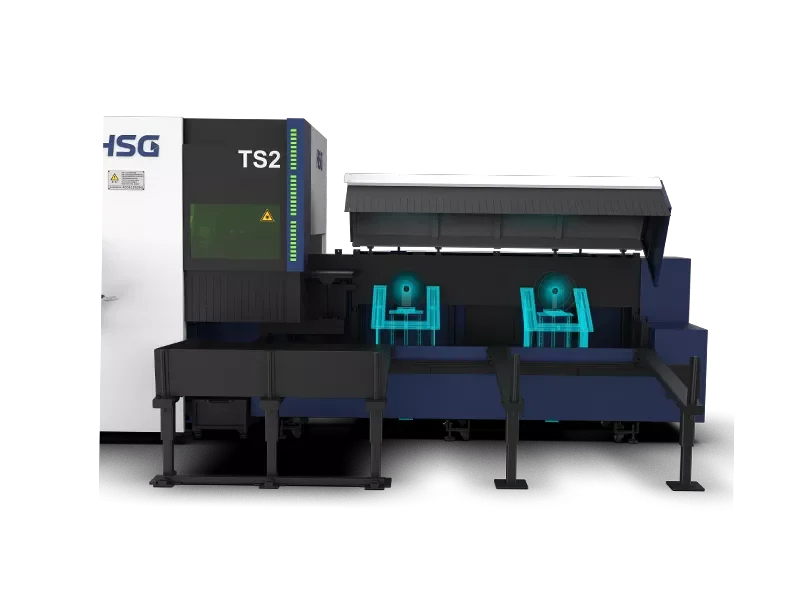

Dynamic Unloading
Intelligent adjustment of position based on the length of the workpiece with one follow-up flip board and two follow-up concave wheels, providing stable support during cutting process.

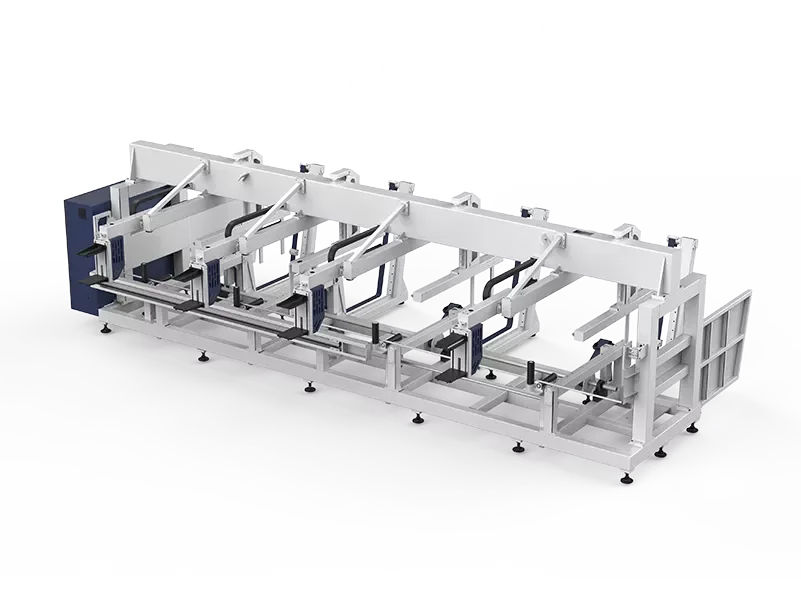

Efficient Automatic Loading Within25s（Optional）
Optional fully automatic loading. The loading time can be as short as 25 seconds, improving processing efficiency.

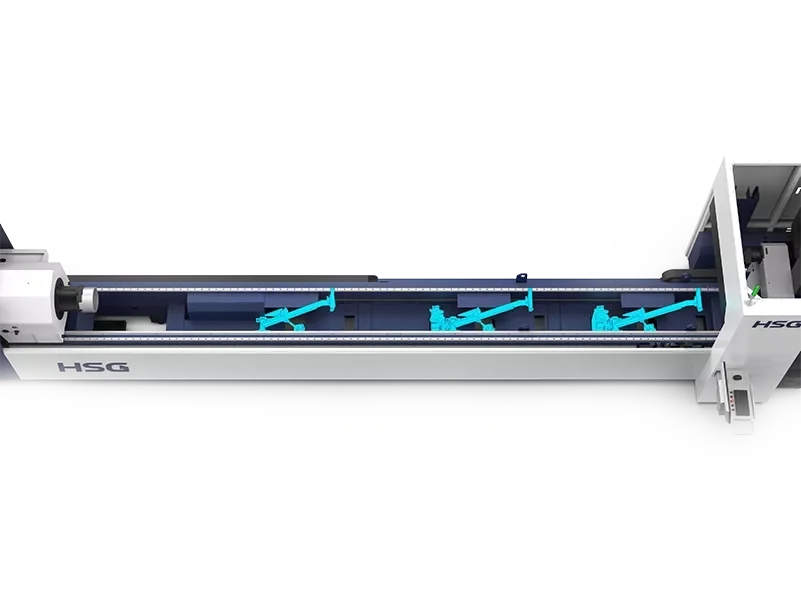

Dynamic Support
The machine is equipped with highly sensitive and independent servo follow-up support to ensure stable tube cutting and enhance cutting precision.

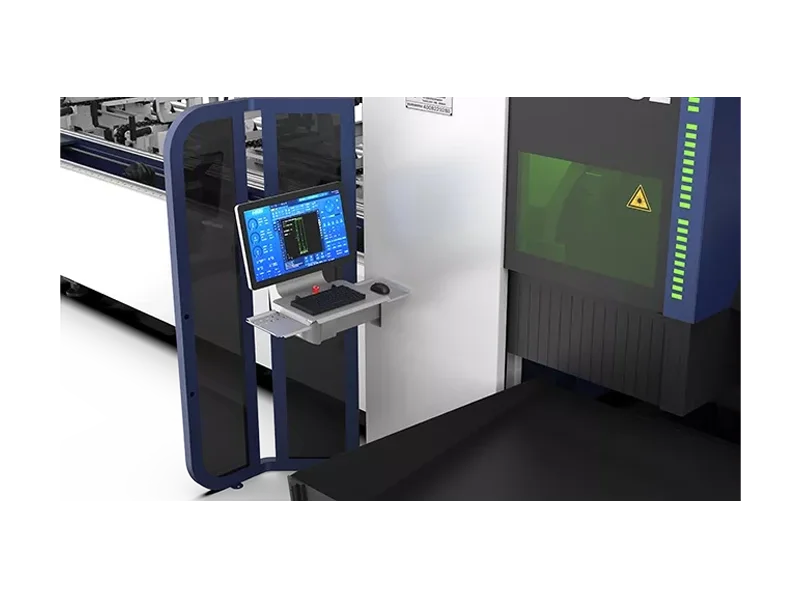

HSG-X Intelligent Bus Operating System
Clear interface is convenient for users operating and shows cutting data in real time to save time and costs.A number of core functions are shown centrally on the interface to reduce operating steps and users can easily learn to operate.

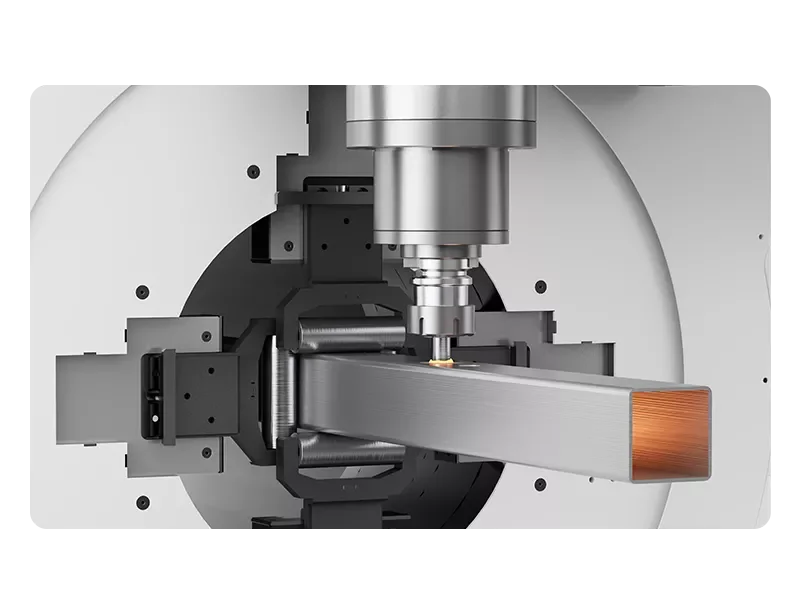

Cutting+Drilling+Tapping(Optional)
Integrated laser cutting, hot melt drilling and tapping, for molding at once to reduce processing processes, save labor, greatly shorten processing time and improve production efficiency.

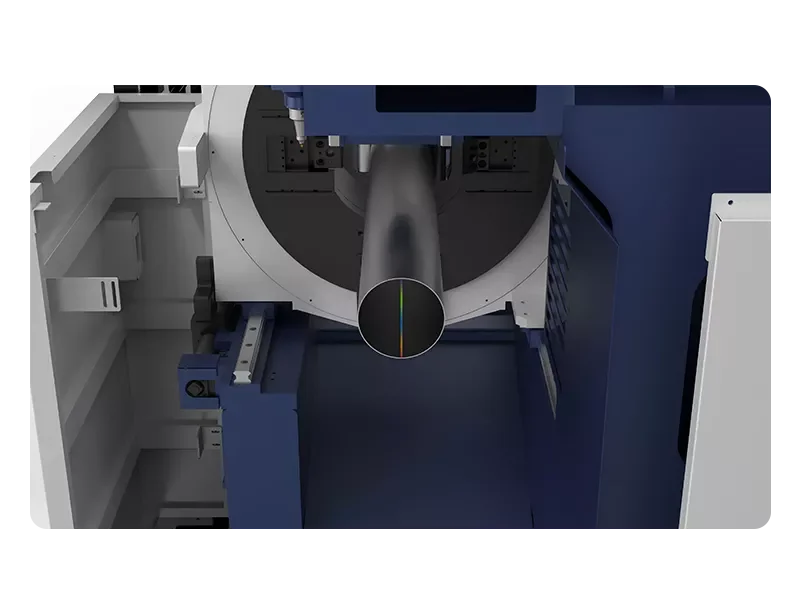

Dynamic Seamline Inner WeldDetection(Optional)
Accurately identifies weld seams from inside the tube, preventing recognition errors caused by external rust or polishing, and reducing scrap rates.
