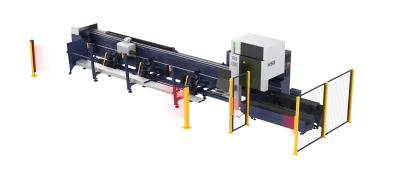

Fast and high-quality cutting of tiny tubes
Minimum diameter for round pipes:8mmMinimum edge length of square pipes: 8mm

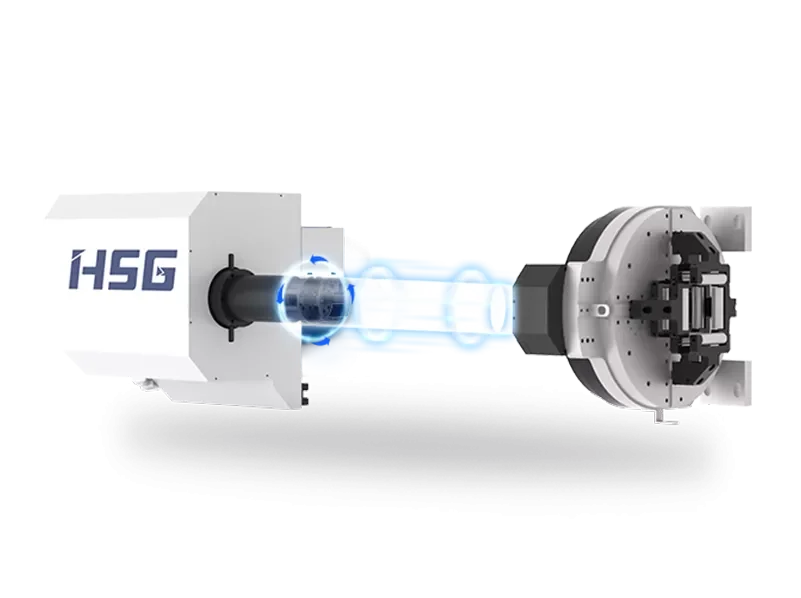

High dynamic performance
Speed of chuck:150m/minRotation speed of chuck: 150r/minAcceleration of chuck:1.5GIncreasing the production efficiency and productivity , significantly reduce your lead times.

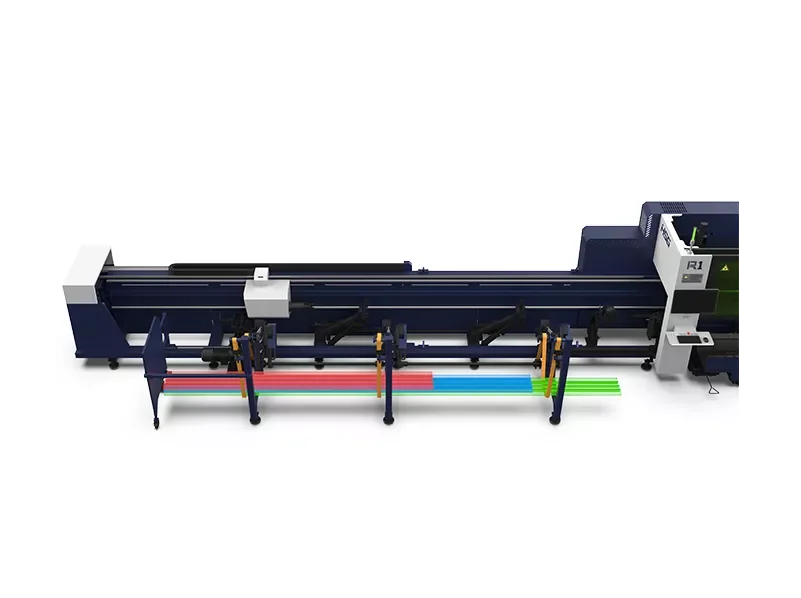

Efficient Multi-mode Loading
* R1 Series matches with automatic material racks to achieve loading material in 20s.* Automatic material racks can support the tubes with 20mm-120mm diameter and 4m-6.5m length.* Automatic material rack is compatible with semi-automatic loading mode for loading one by one.

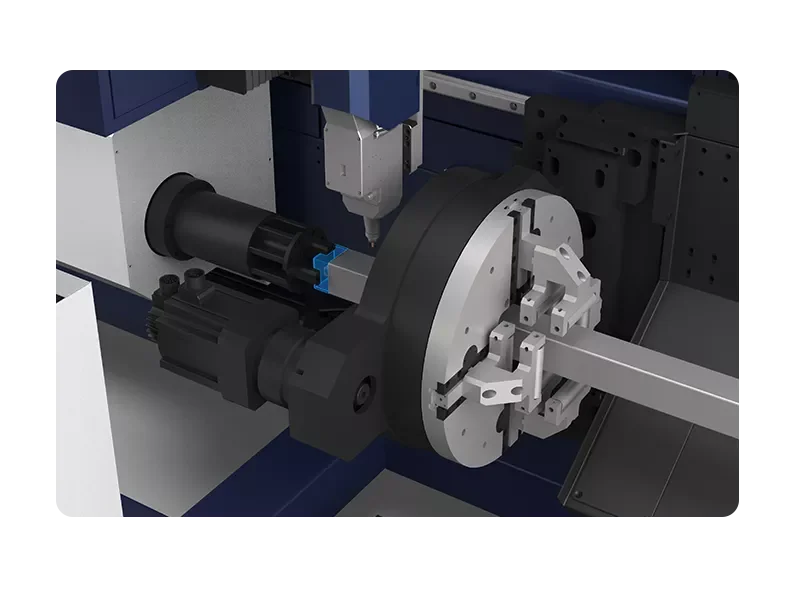

Chuck Jumping for Short Tailings
* Standard equipped with chuck jumping of the cylinder and R1 Series can shorten the large amplitude of tailing length through chuck jumping.* Jumping type of high-precision cutting can ensure the cutting accuracy of long tubes by chuck displacement.* Optional servo chuck jumping can finish chuck jumping action accurately and efficiently.

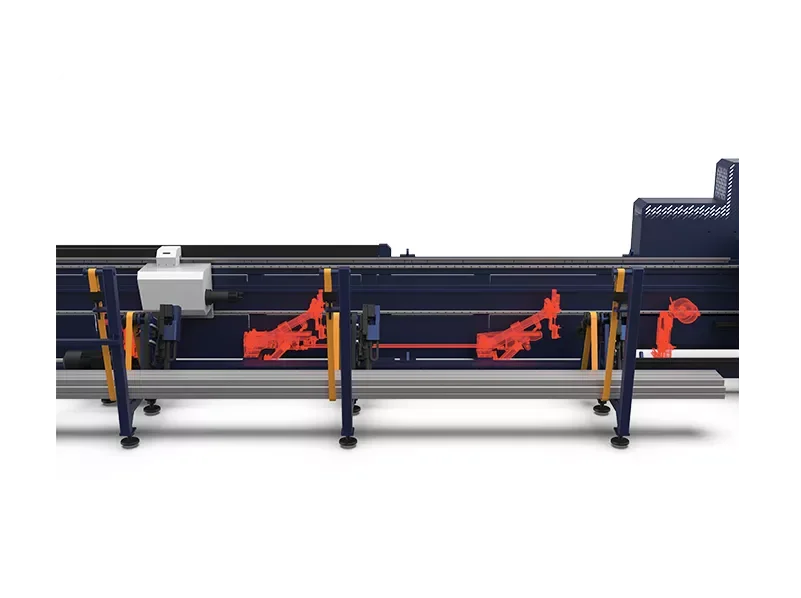

Follow-up Support for High Precision
The machine bed is equipped with highly sensitive and independent servo follow-up support to provide enough support force in rotation cutting and achieve high cutting accuracy.

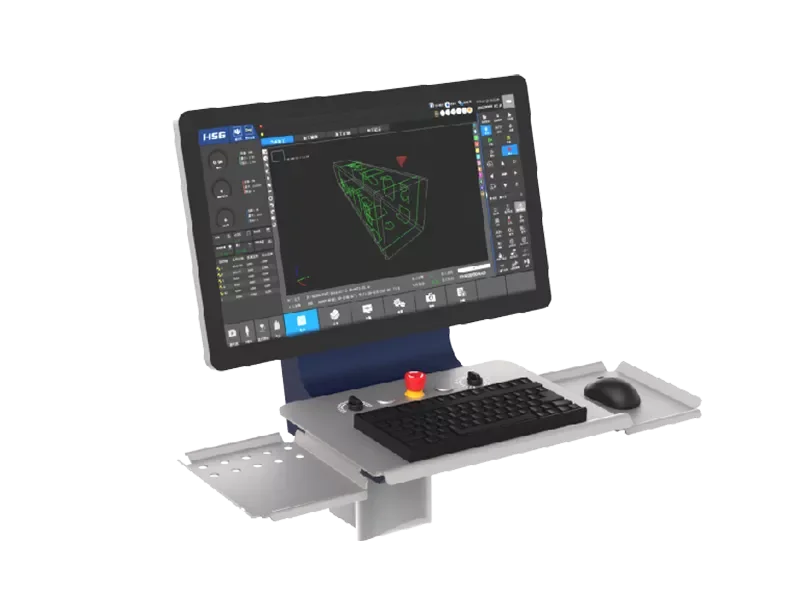

Intelligent Bus Operating System
* Various auxiliary functions of tube laser cutting machines to satisfy multiple processing
demand* R1 series is equipped with professional nesting software to achieve efficient management
of production progress and price calculations.
